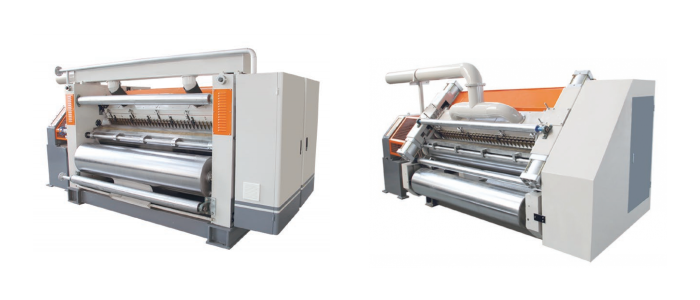

Single side corrugating machine

Using negative pressure type design helps the mediumpaper to press evenly and closer to the surface ofcorrugating roll to have perfect forming. And also get evengluing on the flute tip to have perfect laminating of thesingle facer.

Tel: +86-15831797755
cartonboxmachine@qq.com
WhatsApp: 008615831797755

Consultation

Product details:

1.320C Design Speed:150m/min
2.Effective width:1400mm-2200mm
3.Corrugated roller:φ320mm/360mm
4.Drive reducer box with oil immersed type lubricating to reduce noise keep running stable.adopt gimba transmission.separate power.(optional)
5.Corrugating roller,pressure roller and glue roller by pneumatic adjustment.
6.Cardboard transmit adopt vacuum suction method,with wind control system.keep flute profiles stable of the lower-roller in the condition ofrunning up.
7.Bearing of corrugated and pressure roller adopt high temperature lubricate grease.
8.Glue parts auto supply glue circularly
9.The upper-lower corrugating roller are made of 48CrMo high quality alloy steel,after heat-treatment.The hardness is above HV1200,the surfacebe dealing with tungsten carbide.
10.The glue part surface are treated by special mesh snicked and chromeplated.
11.Manud or electric insulation glue device.
12.Glue part can be running independently or non-independently while stopped.
