2 Ply Corrugated Cardboard Production Line

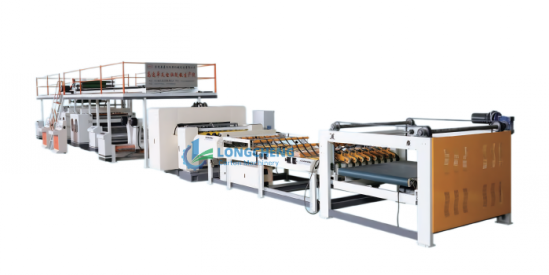

High-speed automatic computer single layer production line

Product details：

The Single facer Line is composed of Paper Rollstand, Single facer machine, Paper cuting machine. To use the web papermaterial single face machine production line, producing and cutting single face corugated paper as required sizes, it formsthe corrugated board with no need drying.

1.Design speed:150m/min.
2.Actual production speed:50-130m/min
3.slitter quantity:5.
4.Min.Slitter width:180mm.
5.Row knife time:1-3s.
6.Slit accuracy:0.5mm.
7.Cutting length:300～9999mm.
8.Cutting accuracy:1mm(uniform speed).
9.Stacking height:250~600mm (according to customer needs to select).
10.The maximum length of cardboard stacking:1600mm.
11.Constant tension cardboard delivery,delivery speed and single-facerspeed strict synchronization.
12.Alloy steel blade slitter,automatic sharpening,long blade life,high cuttingquality.
13.Slitters row independent servo control,change over fast,accurate,reliable.
14.Slitter speed frequency motor,frequency control,follow cardboard speedsynchronous adjustment.
15.When change orders,left and right absorb waste place following edgedknife electric adjustment.
16.Cutter part box adopt quality castings ,strictly aging treatment,precisionmachining,long-term stable operation of equipment.
17.Alloy steel spiral cutter shaft,precision machining,balancing correction,high stiffness,low inertia.
18.Crosscutting knife Bryant Germany AC servo controller.

Product parameter：

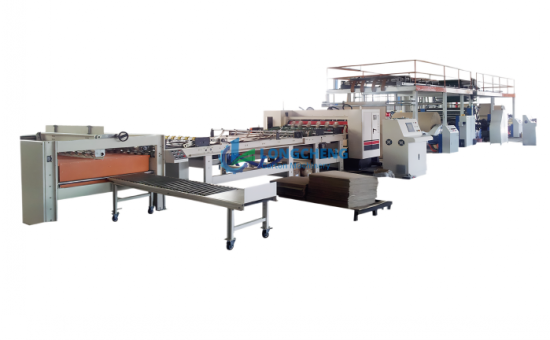

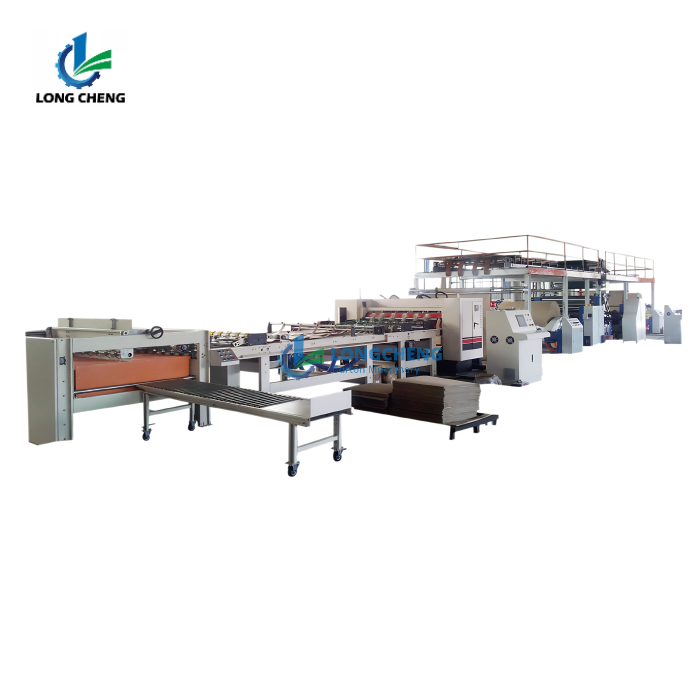

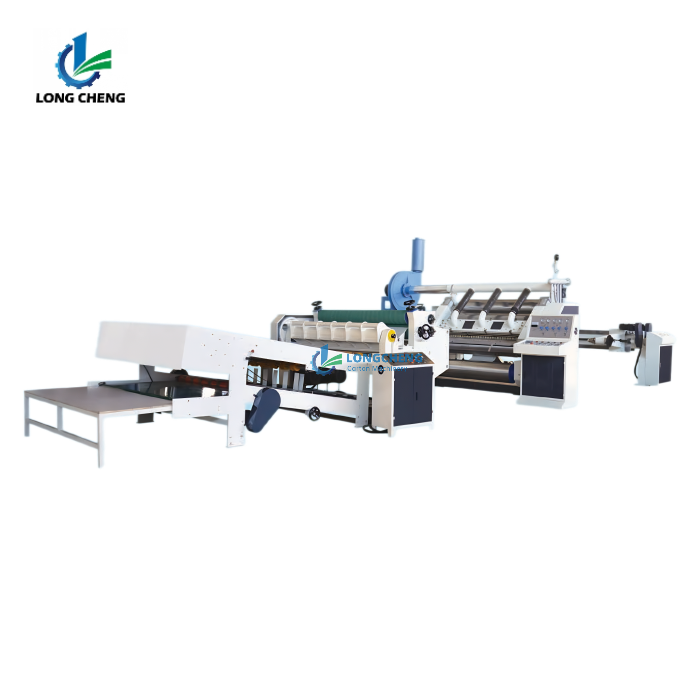

Economical single layer production line：

Product details：

The production line consists of a semi-automatic production line consisting of a web support, a corugated board forming machineand a rotary paper-cuting machine. The roll-type material can be continuously produced and cut into single-faced corugated paper of therequired specications. It has the characteristics of advanced production process,high efficiency, strong batch adaptability and good workingconditions. It is an ideal equipment for technical transformation of medium and small carton factories.

1.The highest rate of 70/min machine.
2.The length of the longest1500mm machine.
3.The machine can be up to4 copies of the paper collection.
4.The machine can realize automatic points automatic step.
5.The highest of each stack stack height is 300mm.

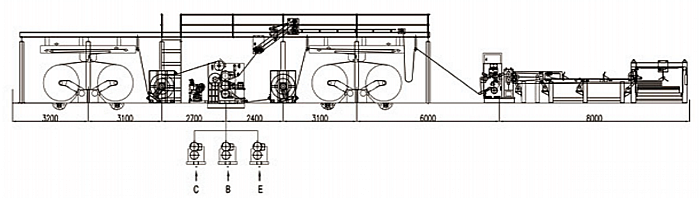

Production process：

Sample display
