The line is composed of cover type adsorption corrugated machine, paper bearing frame, glue machine, double-sided machine, paper cutter, preheating roller, double-layer bridge, glue machine and so on.

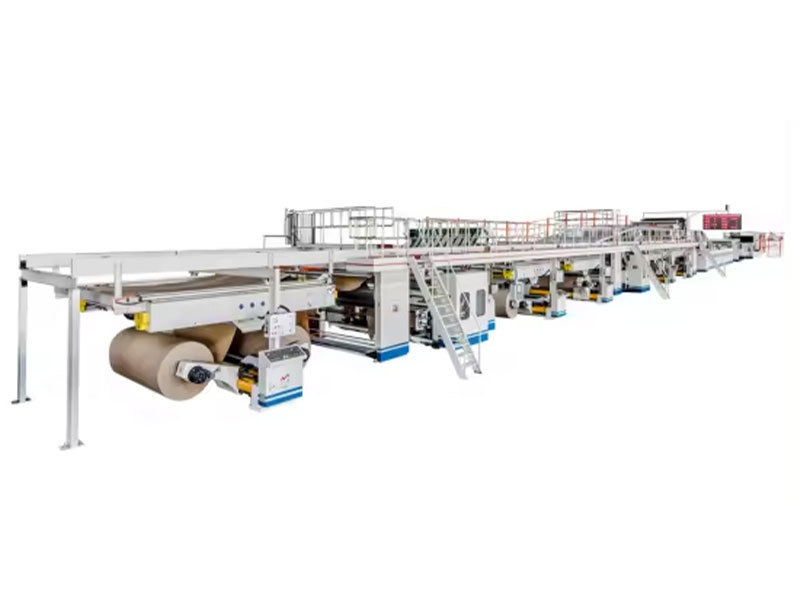

High speed 3 5 7 ply corrugated cardboard production line
The line is composed of cover type adsorption corrugated machine, paper bearing frame, glue machine, double-sided machine, paper cutter, preheating roller, double-layer bridge, glue machine and so on. It is our company in the absorption of foreign advanced technology, widely listen to the opinions of users on the basis of the company’s more than 20 years of experience in the production of carton machinery and the development of new products. Its characteristics are high degree of automation, convenient operation.
| No. | Technology project | Five Layers | Three Layers |
| 1 | Maximum production width | 1800 mm | 1800mm |
| 2 | Design speed | 150 m/min | 120m/min |
| 3 | Economic speed | 100-120 m/min | 60-100 m/min |
| 4 | Commissioning temperature | ≥175 ℃ | ≥172 ℃ |
| 5 | Base paper grades | ≥level B | ≥level B |
| 6 | Base paper moisture content | 10%±2% | 11%±2% |
| 7 | Tissue | 100~250g/m2 | 100~180g/m2 |
| 8 | The core of paper | 100~250g/m2 | 80~160g/m2 |
| 9 | Tile paper | 100- 200g/m2 | 90~160g/m2 |
| 10 | Corrugated type combination | A, B, C, E (customer can customize) | A, B, C, E (customer can customize) |
| 11 | Maximum steam pressure | 16Kg/cm² | 16kg/cm² |
| 12 | Common steam pressure | 10-12Kg/cm² | 8-12kg/cm² |
| 13 | The total amount of steam | 2500-3000KG/h | 1000-1500KG/h |
| 14 | Compressed air pressure is commonly used | 0.8-1.1Mpa（4-8kg/cm² ） | 5-7kg/cm² |
| 15 | Maximum compressed air pressure | 1.2Mpa（9kg/cm² ） | 8kg/cm² |
| 16 | Overall compressed air consumption | About after 1 m³/min | 1 m³/min |
| 17 | The power supply | 380V, 50HZ, three-phase four-wire system (foreign voltage can be customized) | 380V 50Hz Three-phase four-wire system (foreign voltage can be customized) |
| 18 | Total installed power of equipment | About 220 KW | About 120KW |
| 19 | Actual electricity consumption | About 150KW(full speed) | About 80KW(full speed) |
| 20 | Equipment cover area | About 70m x 10m x 4.5m (the specific length is subject to the foundation drawing) | About 45m×8m×4.5m (The specific length shall be subject to the foundation diagram) |
| 21 | Forecast production | Output of about 6-70,000 square meters in 8 hours | |
| 22 | Paper outlet direction of the device | According to the user workshop to determine the left or right drive | According to the user workshop to determine the left or right drive |
| 23 | Suitability of equipment | Available A, B, C grade domestic base paper or imported base paper | available A, B, C grade domestic base paper or imported base paper. |
| If there is any other technical correction, no further notice will be given | |||
Our equipment is suitable for various types of corrugated boxes, all equipment can be customized according to customer needs. We have a professional team to recommend suitable and cost-effective equipment to meet your production needs and save your budget. One model for many needs.
Q: Are you trading company or manufacturer?
A: We are manufacturer, and also provide the business solution to all the friends.
Q: Do you have quality certificate?
A: Yes we have CE, etc.
Q: What’s the delivery time?
A: Around 20~30days, however, based on order.
Q: Can you help us to buy other goods?
A: Sure of that, it is our honor to work for you, and control the goods quality.
Q: What’s payment terms, trade terms you accept?
A: Usually we appreciate T/T 30% deposit, then 70% balance is paid before shipment , we usually offer FOB tianjin price. but we also accept other way like L/C, wetern union, and do CFR&CIF etc.
Q: Does it easy to operate and what can i do if it doesn’t work?
A: We suggest you to come to visit our factory to learn more thing by yourself, and if there is something goes wrong , you can call us, video-chat, email us. And we will give solutions within 36 hrs. Our engineer also can be distributed to overseas as you required.
