Corrugated cardboard production line

Corrugated board production line is mainly composed of hydraulic reel stand(base paper holder)、Surface(core) paper preheater、Corrugated single facer machine、Transport bridge、Gluing machine、Double-facer machine、Slitting machine、Cutoff machine、Stacking machine and glue system、Steamsystem、Electrical control system、Air compression system and other equipment.

Tel: +86-15831797755
cartonboxmachine@qq.com
WhatsApp: 008615831797755

Consultation

Product details：

Corrugated board production line is mainly composed of hydraulic reel stand(base paper holder)、Surface(core) paper preheater、Corrugated single facer machine、Transport bridge、Gluing machine、Double-facer machine、Slitting machine、Cutoff machine、Stacking machine and glue system、Steamsystem、Electrical control system、Air compression system and other equipment.Our company is absorbingadvanced technology from China domestic and abroad, On the basis of a wide understanding of user needscombined with our company many years of corrugated board production line experience,R&d and productionof high speed three layer, five layer, seven layer corrugated cardboard production line with speed150~300m/min,A/C/B/E different flute profiles available for customer needs to choose.

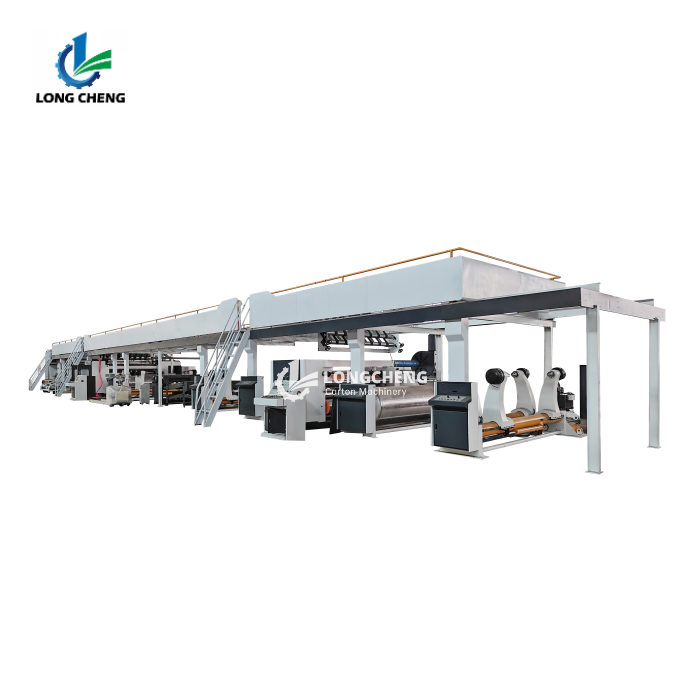

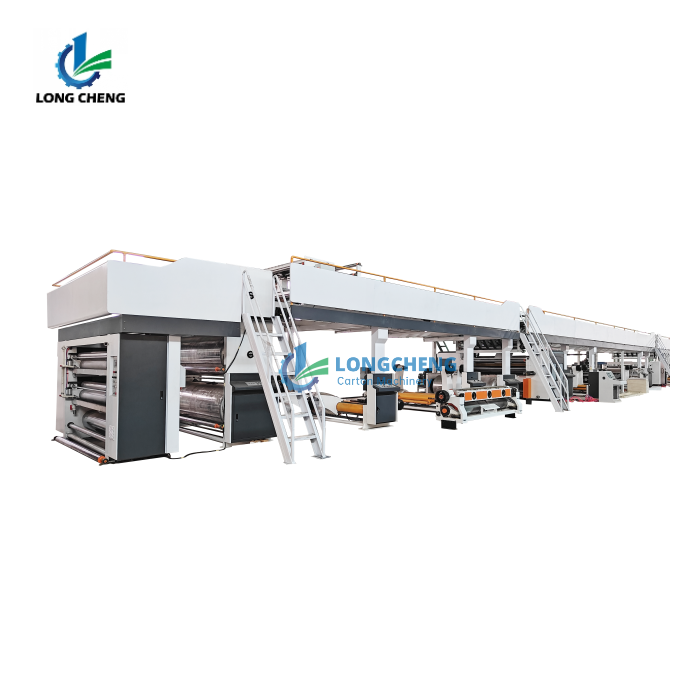

Corrugated cardboard production line（images 4）

Product parameter

No.	Technology project	Five Layers	Three Layers
1	Maximum production width	1800 mm	1800mm
2	Design speed	150 m/min	120m/min
3	Economic speed	100-120 m/min	60-100 m/min
4	Commissioning temperature	≥175 ℃	≥172 ℃
5	Base paper grades	≥level B	≥level B
6	Base paper moisture content	10%±2%	11%±2%
7	Tissue	100~250g/m2	100~180g/m2
8	The core of paper	100~250g/m2	80~160g/m2
9	Tile paper	100- 200g/m2	90~160g/m2
10	Corrugated type combination	A, B, C, E (customer can customize)	A, B, C, E (customer can customize)
11	Maximum steam pressure	16Kg/cm²	16kg/cm²
12	Common steam pressure	10-12Kg/cm²	8-12kg/cm²
13	The total amount of steam	2500-3000KG/h	1000-1500KG/h
14	Compressed air pressure is commonly used	0.8-1.1Mpa（4-8kg/cm² ）	5-7kg/cm²
15	Maximum compressed air pressure	1.2Mpa（9kg/cm² ）	8kg/cm²
16	Overall compressed air consumption	About after 1 m³/min	1 m³/min
17	The power supply	380V, 50HZ, three-phase four-wire system (foreign voltage can be customized)	380V 50Hz Three-phase four-wire system (foreign voltage can be customized)
18	Total installed power of equipment	About 220 KW	About 120KW
19	Actual electricity consumption	About 150KW(full speed)	About 80KW(full speed)
20	Equipment cover area	About 70m x 10m x 4.5m (the specific length is subject to the foundation drawing)	About 45m×8m×4.5m (The specific length shall be subject to the foundation diagram)
21	Forecast production	Output of about 6-70,000 square meters in 8 hours
22	Paper outlet direction of the device	According to the user workshop to determine the left or right drive	According to the user workshop to determine the left or right drive
23	Suitability of equipment	Available A, B, C grade domestic base paper or imported base paper	available A, B, C grade domestic base paper or imported base paper.
If there is any other technical correction, no further notice will be given

Production process

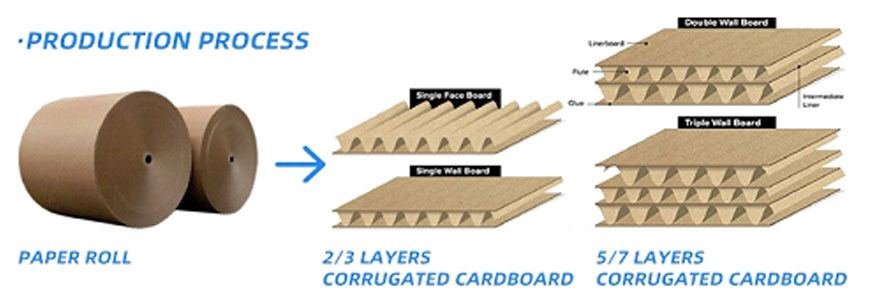

Corrugated cardboard production line（images 5）

Sample display

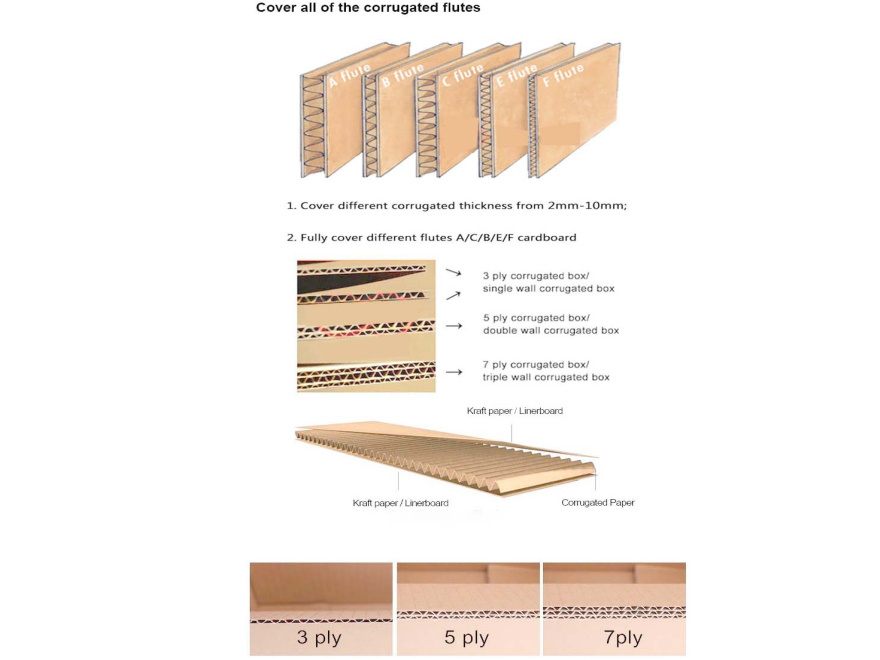

Corrugated cardboard production line（images 6）

Our equipment is suitable for various types of corrugated boxes, all equipment can be customized according to customer needs. We have a professional team to recommend suitable and cost-effective equipment to meet your production needs and save your budget. One model for many needs.
