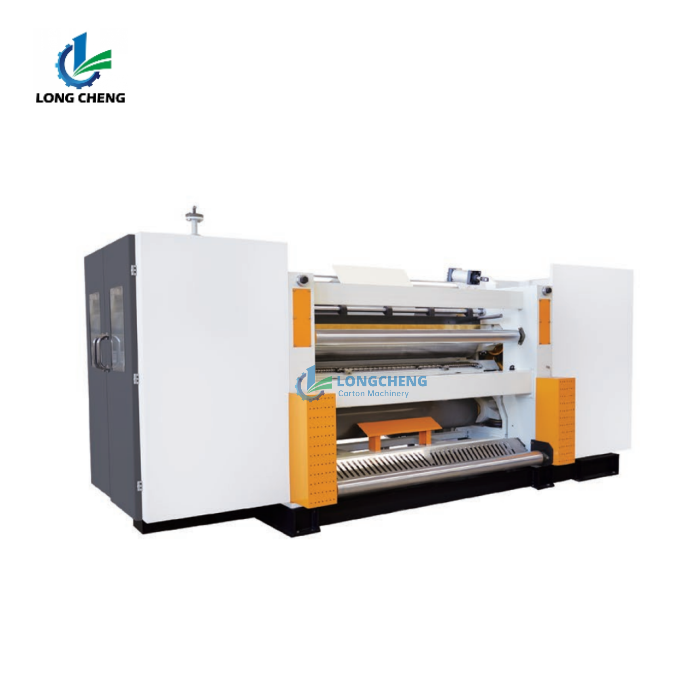

Cassette type single side corrugating machine

Cardboard production line

Product details:

1.SF360 design speed:200m/min;SF320 design speed:180m/min.Effective width:1400mm-2800mm.
2.Corrugated roller:φ360mm/φ320mm。
3.The negative pressure design enables the core paper to be evenlypressed and attached to the surface of the corrugating roller,andevenly coated with glue to make the single-sided corrugating paper fitbetter.
4.Quick roll change,10 minutes.When replacing the corrugated roll,it is towed by an electric trolley,sent into the machine,fixed on themachine base,and quickly and easily completed the replacement ofthe corrugated roll.
5.Corrugated roll and pressure roll adopt air bag control system with highstability.
6.The gluing amount is controlled by electric adjustment.The glueseparating device is electric.The gluing system can operateindependently when the host machine stops to prevent glue exhaustion.The mobile gluing system is not only convenient for cleaning,but alsoconducive to maintenance and repair
7.Simple operation and control system,touch screen operation interface,and color map display of operation status make it easy to operate.
8.Built in pre regulator with spray system to adjust core paper temperatureand moisture.
